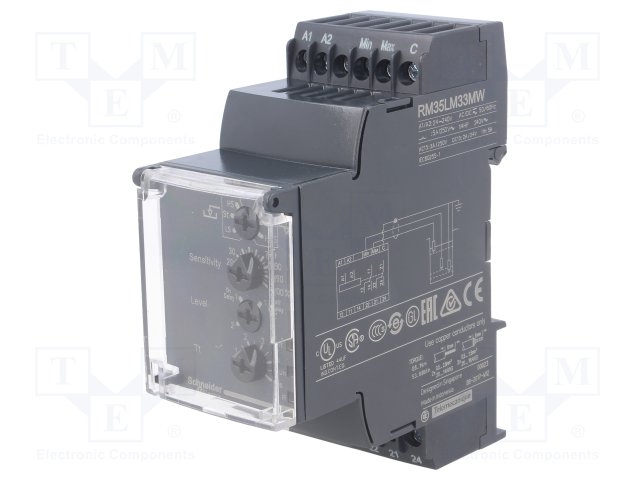

Modular liquid level control relay, Harmony, RM35LM33MW

Description

Range of product Harmony Control Relays
Product or component type Level control relay
Relay type Level control relay
Relay name RM35L
Relay monitored parameters Detection by resistive probes
Time delay type Adjustable 0.1…5 s, +/- 10 %
Switching capacity in VA 1250 VA
Minimum switching current 10 MA at 5 V DC
Maximum switching current 5 A AC/DC
Maximum power consumption in VA 5 VA AC
Measurement range 250 Ohm…1 MOhm
Utilisation category AC-12 conforming to IEC 60947-5-1
AC-13 conforming to IEC 60947-5-1
AC-14 conforming to IEC 60947-5-1
AC-15 conforming to IEC 60947-5-1
DC-12 conforming to IEC 60947-5-1
DC-13 conforming to IEC 60947-5-1
Contacts type and composition 2 C/O
Complementary
Reset time 1750 Ms
Maximum switching voltage 250 V AC/DC
[Us] rated supply voltage 24…240 V AC/DC 50/60 Hz +/- 10 %
Supply voltage limits 20.4…264 V AC/DC
Control circuit voltage limits – 15 % + 10 % Un
Maximum power consumption in W 1.5 W DC
Output contacts 2 C/O
Nominal output current 5 A
Run-up delay at power-up 0.6 S
Measurement accuracy +/- 10 % of the full scale value
+/- 20 % for the HS range
Repeat accuracy +/- 2 % for time delay
Measurement error 0.5 %/°C with temperature variation
Sensitivity scale 0.25…5 kOhm LS (Low Sensitivity)
5…100 kOhm St (Standard Sensitivity)
50…1000 kOhm HS (High Sensitivity)
Sensitivity adjustment 5…100 %
Maximum supply current for sensors 1 MA
